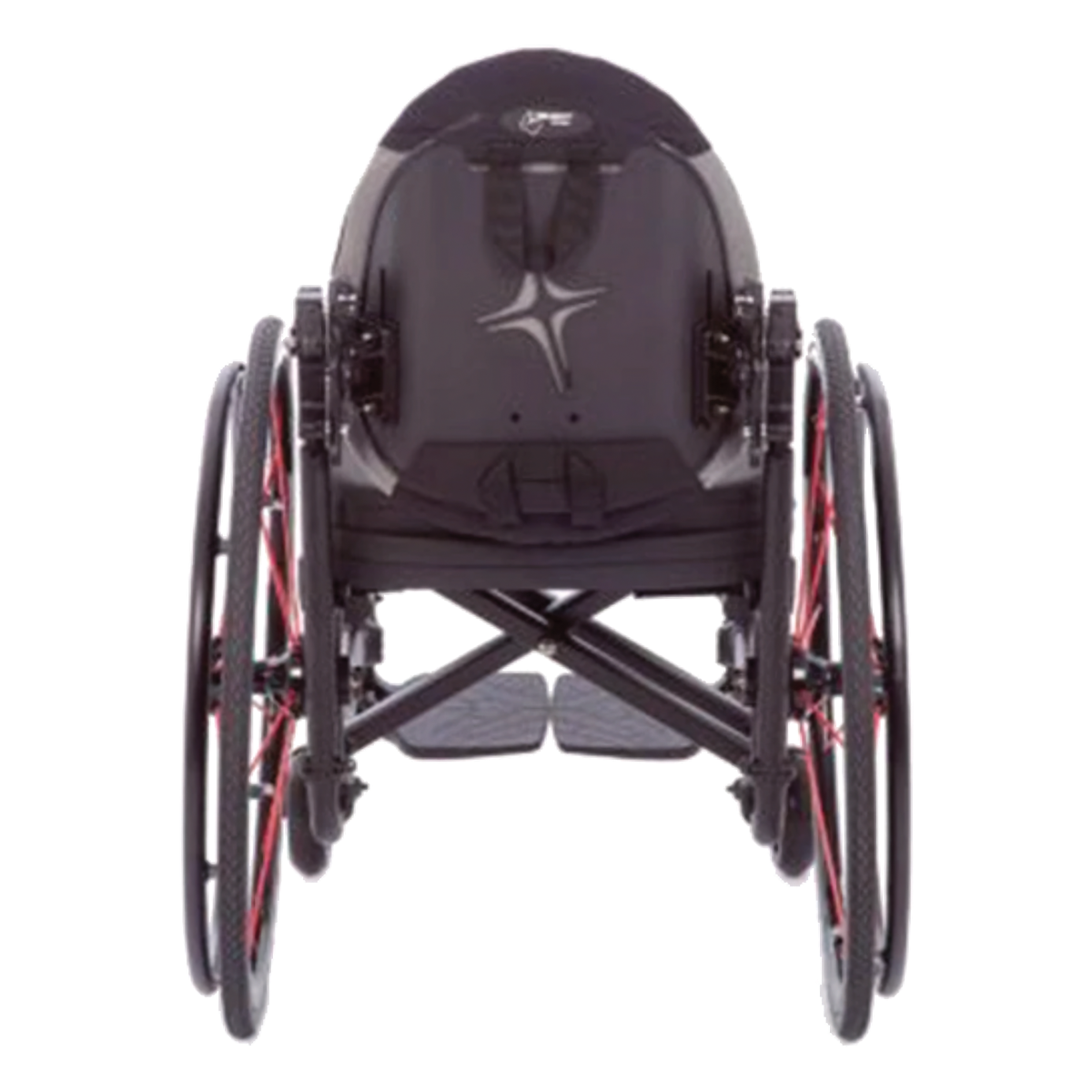

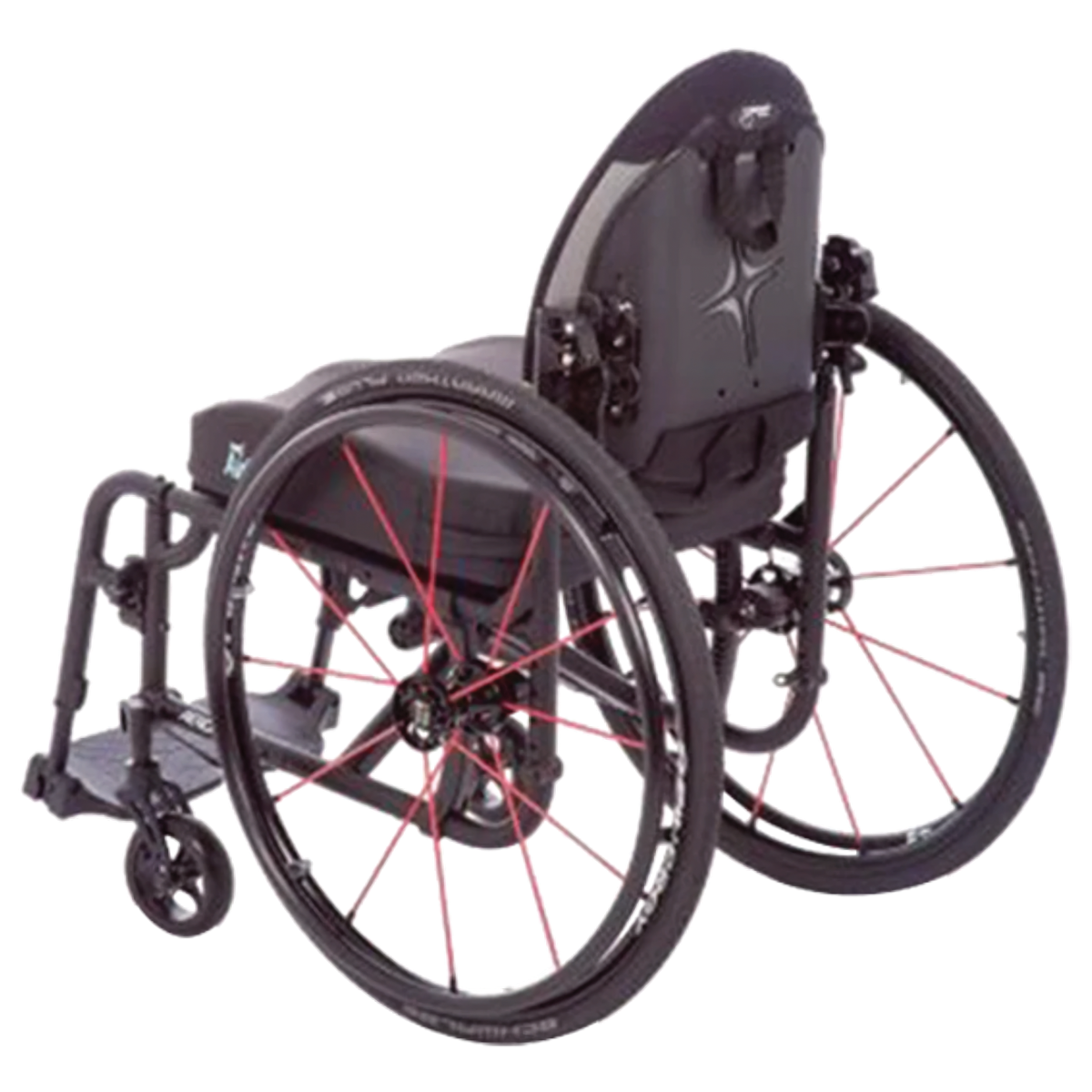

TiLite Aero X Folding Manual Wheelchair

The TiLite Aero X features an innovative modular design with clean modern lines and configurability. It features multiple configurations that include heavy- duty, hemi, and amputee options alongside transport brackets. Add superior rolling dynamics and full adjustability, and you get an Aero X that excels in both performance and price.

More Information


TiLite Aero X - modular design
Modular design

The modular frame design of the Aero X facilitates configurability in the field. This includes adding aftermarket seating systems, switching fixed and swing away front ends, and growing chair width and/or depth to meet changing customer needs.

TiLite Aero X Folding Manual Wheelchair
Folding frame

The Aero X folding frame is compact, with a fluid, easy-to-use folding mechanism. Side-to-side folding minimizes the folding width and maximizes ease of transportation. These features are “must have” advantages for anyone who chooses a folding chair.

TiLite Aero X - box frame
Box frame

TiLite has taken this standard wheelchair design and added efficiency in both function and manufacturing. Here is a design that is strong, efficient, and cost effective so that you get more of what you want.

TiLite Aero X - full adjustability
Full adjustability

The Tru-Fit system opens up the world of adjustability by incorporating an infinite adjustment mechanism. The Tru-Fit system allows you to fine tune the fit of your wheelchair because you are not limited to a series of pre-set holes.

Technical specifications
Frame featuresAluminium box frame folding
Modular design
Full adjustability
Total chair width folded (based on 16” x 16” chair with 0° camber, minimum rear wheel spacing and all standard features)10.5"
Total chair width (based on 16” x 16” chair with 0° camber, minimum rear wheel spacing and all standard features)23"
Seat width12"-22"
Seat depth12"-20"
Front seat height13.5"-21.5"
Rear seat height13"-20"
Front frame angleFixed front: 70°, 80° or 85°
Swing Away: 70°, 80°, 85° or 90°
Seat back typeFolding seat back:
Adjustable height: 11"-20.5"
Adjustable angle: 80°-101°

Fixed seat back:
Adjustable height: 11"-20"
Camber0°, 2°, 4°, 6°
Centre of gravity adjustment6"
Transport optionsTransit Tie-Down
Transport bracket
Transport weight (based on 16"x16" size, standard configuration, and does not include wheels)Fixed front: 7kg | Swing Away: 8.2kg
Weight limit120.2kg standard frame | 158.7kg heavy duty frame

Warranty Information
The TiLite Aero X has a five year limited warranty on the frame and 12 months on TiLite components. You can download detailed warranty information here.

    Product Compliance with Relevant Standards
    The TiLite Aero X has been tested to and complies with the following standards:

    • AS/NZS 3695.1:2011
    • ISO 7176-19:2008

    ARTG Certificate: 147047
