Raz SP Self Propel Shower Commode Chair
The Raz SP mobile shower commode chair comes standard with 4” of height adjustment, an adjustable-tension fabric backrest, 22” rear wheels, 5” dual-locking casters, flip-up padded armrests, and a commode pan. The easy-to-clean, polished stainless steel frame is designed for easy side and front access by the user or attendant.
Only Raz offers the Ischial and Pelvic Alignment System (IPAS), which allows the commode seat aperture to be comfortably centred around the ischial tuberosities for clients with a posterior or anterior rotated pelvis. With so many adjustments and options available, the Raz SP is a true prescriber-friendly, mobile shower chair.
More Information
Standard Features
Moulded seat
The moulded seat is contoured for pressure reduction and pelvic stability. The soft integral-skin foam offers comfort and durability, and the seat is available with open or bridged front.
Ischial Pelvic Alignment System (IPAS)
The Ischial Pelvic Alignment System (see video below) provides 2” (5cm) of fore/aft adjustment so the seat can be aligned with the pelvis. The IPAS allows centering of the aperture (opening) around the user’s ischial tuber-sixties. The seat locks in place for transfers and removes easily for cleaning. Optional spacers are available for anterior or posterior seat angle adjustment.
Fixed Back
The fixed back is constructed of molded, flexible vinyl upholstery, making it suitable for infection control environments. The back includes flip-up, angle-adjustable arms. The fixed back is 18” (46cm) in height, with a locking armrest upgrade available.
Adjustable footplates
The footrests are removable for transfers and cleaning. The footrests swing in and out easily and the flip-up footplate moves easily out of the way when needed. You can adjust for leg length without tools, with the footrest available in regular length of 16″ to 20½” (40cm to 52cm) and extended length 18″ to 22½” (46cm to 57cm).
Commode pan
The injection-moulded pan is designed for function and includes a lid for splash and odour control. The wide handle angled at 45 degrees provides better ergonomics, while the sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry. Receiver brackets under the seat are visible from the rear of the chair, making it easier to slide the pan into place. The pan fits in a standard autoclave for sterilisation.
Telescoping Caster Extensions
The caster extensions provide 4″ (10cm) of seat height adjustment without the need to use any tools. The dropped front frame tube also improves access over standard toilet bowls.

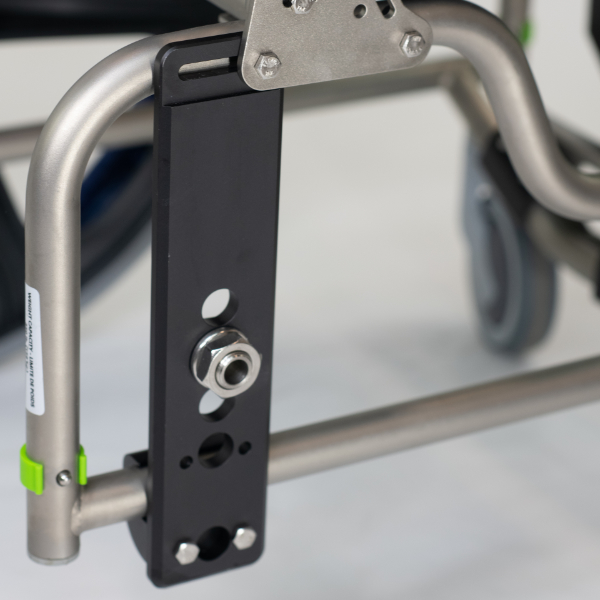

Multi-Position Axle Plates
The axle plates can be adjusted to provide up to 4″ of vertical seat height and 1.5″ of horizontal adjustment for optimal user access and to ensure the commode fits perfectly over the toilet. The axle plates also allow the use of 22″ or 24″ wheels.
Available options and accessories
Technical specifications
| Raz SP with 22" wheels | Raz SP with 24" wheels | |
|---|---|---|
| Weight capacity | 158kg | 158kg |
| Frame width (seat and back frame) | Standard: 46cm (18") | Standard: 46cm (18") |
| Overall width (with standard armpad) | 67cm (26.5") | 67cm (26.5") |
| Overall length (with footrests) | 99cm (39") | 99cm (39") |
| Seat width (commode seat) | 46cm (18") | 46cm (18") |
| Seat depth (front of back post to front of seat) | 40.5cm or 48cm (16" or 19") | 40.5cm or 48cm (16" or 19") |
| Clearance height under seat | Without pan brackets: 41cm | 43cm | 46cm | 51cm (16" | 17" | 18" | 20") With pan brackets: 39cm | 41cm | 44cm | 49cm (15.25" | 16.25" | 17.25" | 19.25") | Without pan brackets: 40cm | 43cm | 45cm | 50cm (15.75" | 16.75" | 17.75" | 19.75") With pan brackets: 38cm | 41cm | 43cm | 48cm (15" | 16" | 17" | 19") |
| Armrest height above seat (with 17" Adjusta-Back) | 18cm - 25cm (7" - 10") in 0.5" increments | 18cm - 25cm (7" - 10") |
| Seat to floor height | 51cm - 61cm (20" - 24") in 1" increments | 51cm - 61cm (20" - 24") in 1" increments |
| Product weight (with footrests) | 21.3kg | 22kg |
| Frame and hardware material | Stainless steel | Stainless steel |
Warranty Information
A two-year limited warranty covers the frame against manufacturing defects. A one-year limited warranty covers all other components, subject to normal wear and tear exclusions.
Product Compliance with Relevant Standards
The Raz SP has been tested to and complies with the following standards:
- AS/NZS 3973:2009
