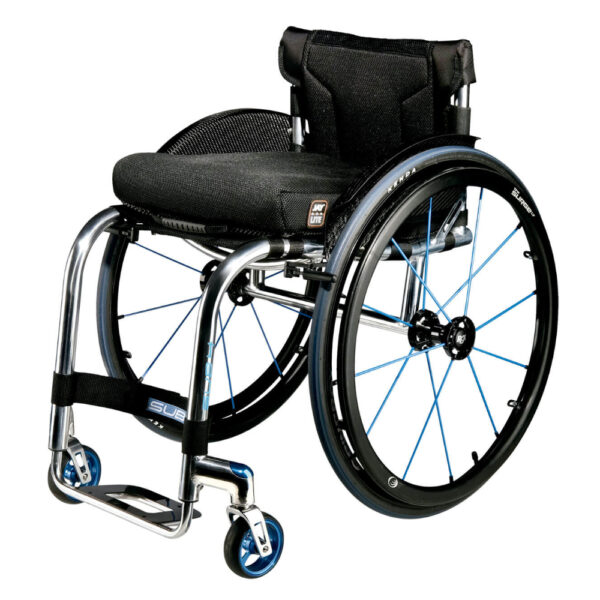

RGK Tiga Sub4 Rigid Frame Manual Wheelchair
Can you believe there’s a wheelchair that weighs the same as a newborn baby?
4kg*. That’s a newborn baby. A 7 week old Labrador puppy. Your Tiga Sub4. By making 72 minute but fundamental changes to the Tiga, alterations that many would simply neglect to notice, we have made an obscenely alluring, pioneering lightweight wheelchair that is as rigid and stable as it is lightweight. Transferring, propelling, lifting, turning… All effortless with your Tiga Sub4.
Made from aerospace grade aluminium, the RGK Tiga Sub4 ultra-lightweight rigid wheelchair has been engineered with love, passion and sheer determination to provide the lightest made to measure wheelchair, with no compromises. RGK believe every gram makes a difference and every component down to washers and screws have been optimised to provide you with a guaranteed* sub 4kg made to measure rigid wheelchair frame.
* excluding wheels and cushion
More Information
Sub 4 kg – guaranteed, no hidden extras

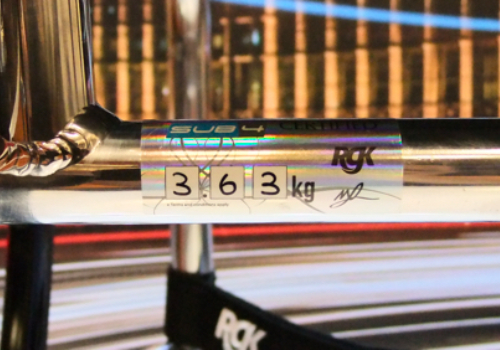

Your made-to-measure Tiga Sub4 wheelchair frame is guaranteed to be under 4 kg; RGK will even write the exact weight on your certified frame. This includes all standard components such as; compact wheel locks, carbon fibre side guards with fender, castors, carbon fibre footrest cover and upholstery. By embracing marginal gains technology, the Tiga Sub4 has been created as an unparalleled ultra-lightweight wheelchair. A completely unique Sub4 upholstery, shortened axle and pin setup, specially designed froglegs super light castors and corrosion resistant titanium fasteners, the Tiga Sub4 is as smart as it is beautiful. The rear wheels and cushion are not included as these are easily removed for transportation.
Lightweight to propel
We understand that a small weight saving can make getting in and out of the car that little bit easier, so imagine what a massive weight saving can do for you! The Sub4 glides effortlessly due to the lightweight and rigid frame, but don’t think we’ve compromised on quality. The Sub4 boasts all the same reliability features as the Tiga, and with the frame being very similar in design and materials, you can be sure the Sub4 isn’t just super light, but it’s super strong too!
Made to measure
The stiff, robust made-to-measure frame and footrest is hand built and designed to your individual requirements. Every tube has been reviewed and analysed to ensure any excess weight is removed and the reliability that you’ve come to expect from an RGK wheelchair is maintained. The same has been done for the parts too. The castor wheelchair, sideguards, brakes and fasters have also been reviewed and analysed to remove any excess weight – without compromising function. So the standard ‘on the road’ specification includes all you need to achieve that under 4 kg weight … with no hidden extras.
Unrivalled performance
Only the best materials are used in your Tiga Sub4. The aerospace grade aluminium used to build a Tiga is famous for its strength, durability and is synonymous with lightness. The Tiga features perfect toe in toe out for minimum drag, a lightweight frame for pushing efficiency. A staggering 19 quality checks throughout the build from measure to handover ensure that each chair is perfectly made.
Personalise your ride
The Tiga Sub4 is available in polished or brushed aluminium or in a wide range of powder coated frame finishes.

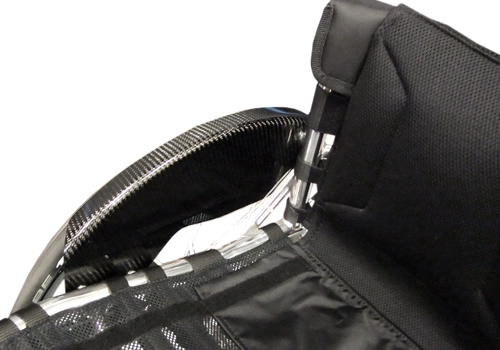

Weight saving upholstery
The weight saving improvements made to the Tiga Sub4 upholstery include a new mesh strap seat sling and backrest which are both adjustasble and fitted with low-profile titanium buckles. For added comfort the backrest comes also comes with an optimised air-tech centre pad.
Technical specifications
| Width | Maximum of 680mm (seat width + 240mm) |
| Seat width | 250mm - 440mm |
| Seat depth | 250mm - 440mm |
| Front seat height | 380mm - 520mm |
| Rear seat height | 360mm - 500mm |
| Backrest height | 100mm - 400mm |
| Backrest angle | Custom per wheelchair |
| Front frame angle | Custom per wheelchair |
| Camber | 1°, 2°, 3° |
| Colours | 23 colours plus 5 anodised accent colours |
| Maximum user weight | 110kg |
| Total weight | Frame under 4kg |
The RGK daily wheelchair range is warranted against manufacturing and/or material fault on the wheelchair frame and cross brace for 5 years after delivery to the customer. For original spare parts which have been fitted at the customer’s expense, these will have a 12 months guarantee, (following the fitting). Consumable parts such as pads, tyres, inner tubes and similar parts are excluded from the warranty, except in the case that premature wear of the part is the direct result of a manufacturing fault.
Product Compliance with Relevant Standards
The RGK Tiga Sub4 has been tested to and complies with the following standards:
- AS 3695
- AS 3696
ARTG Certificate: 257593
