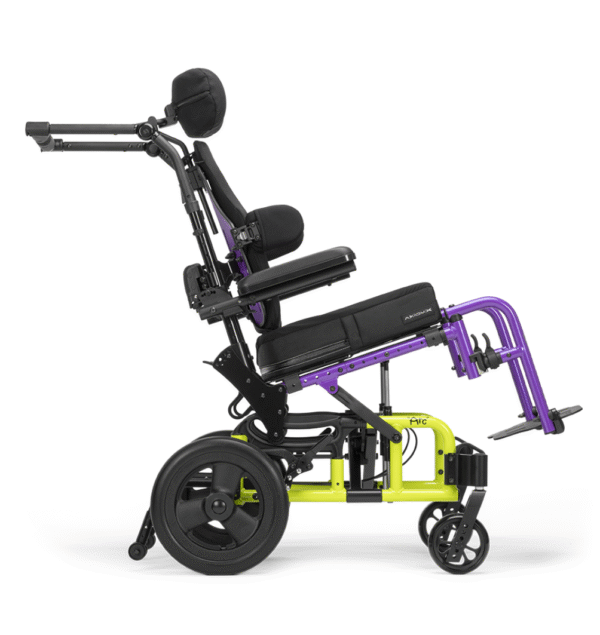

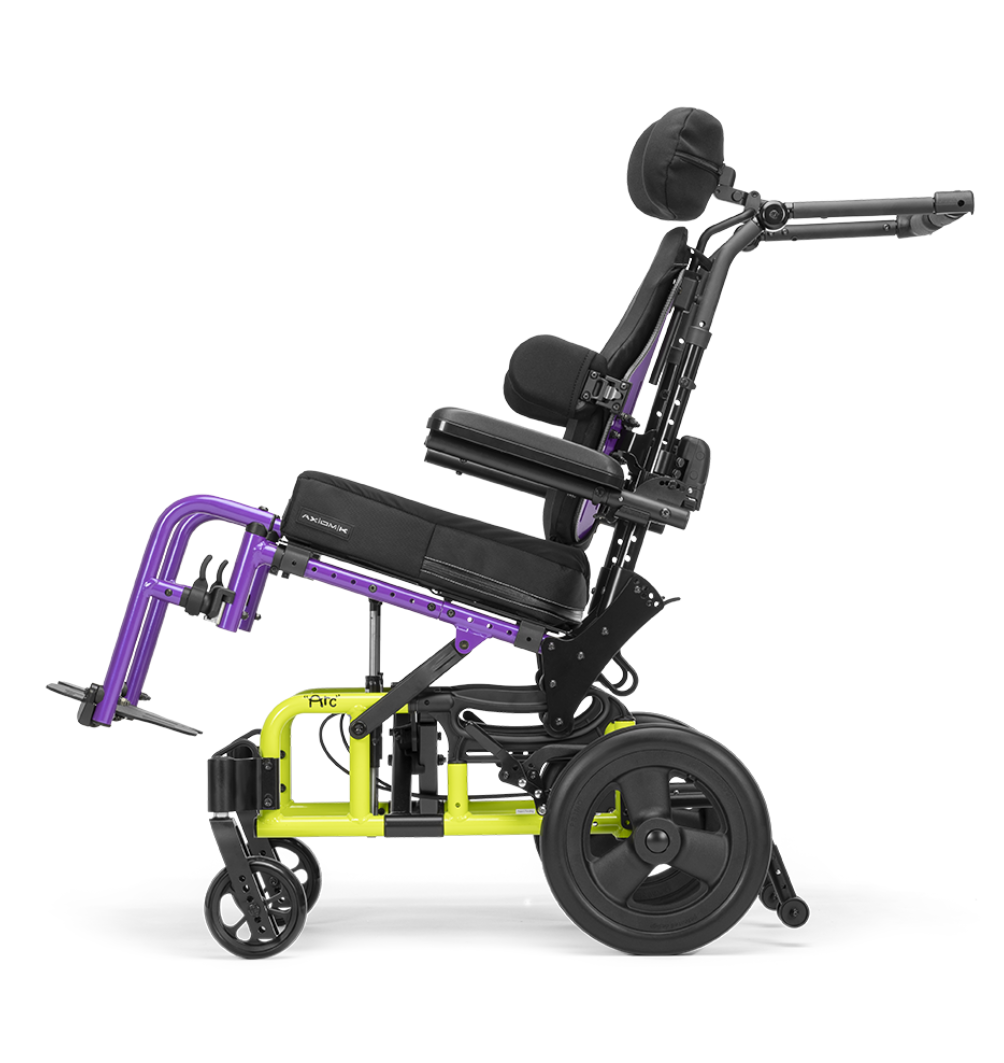

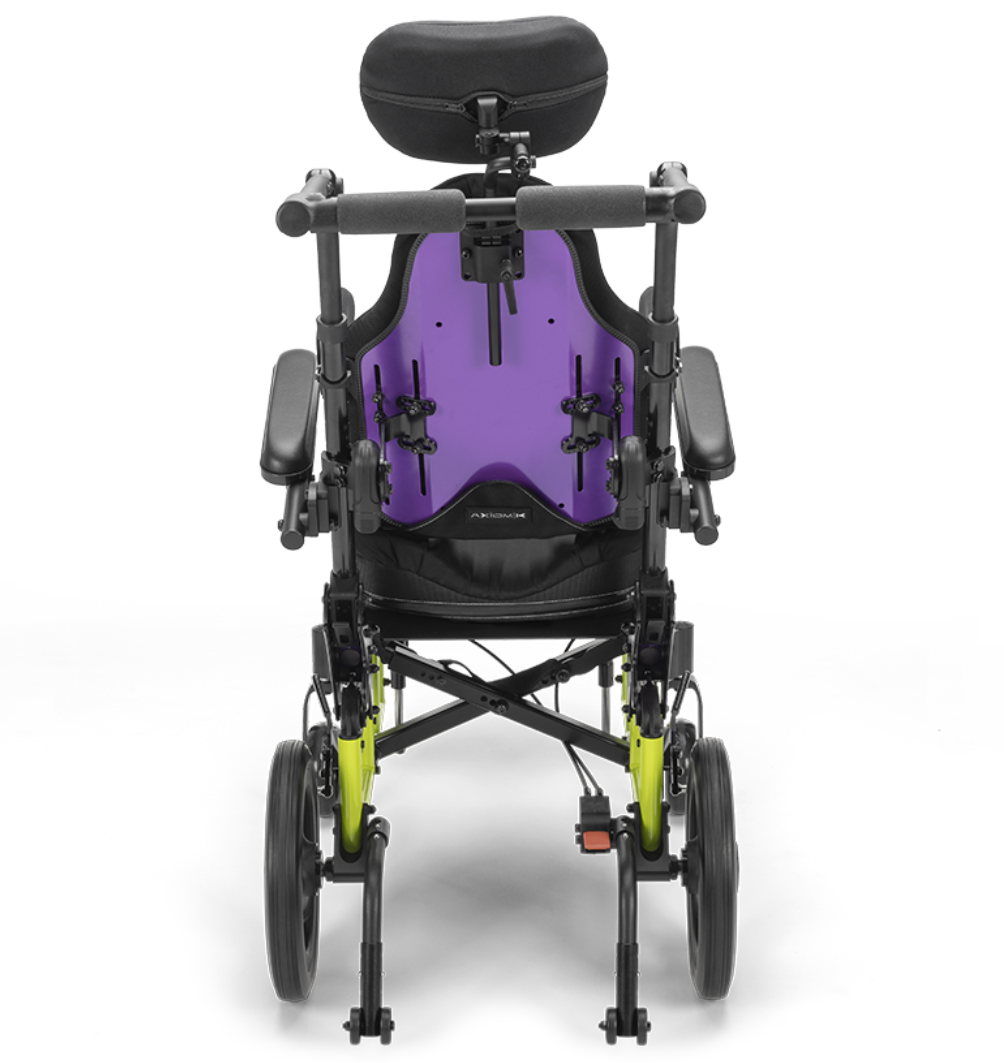

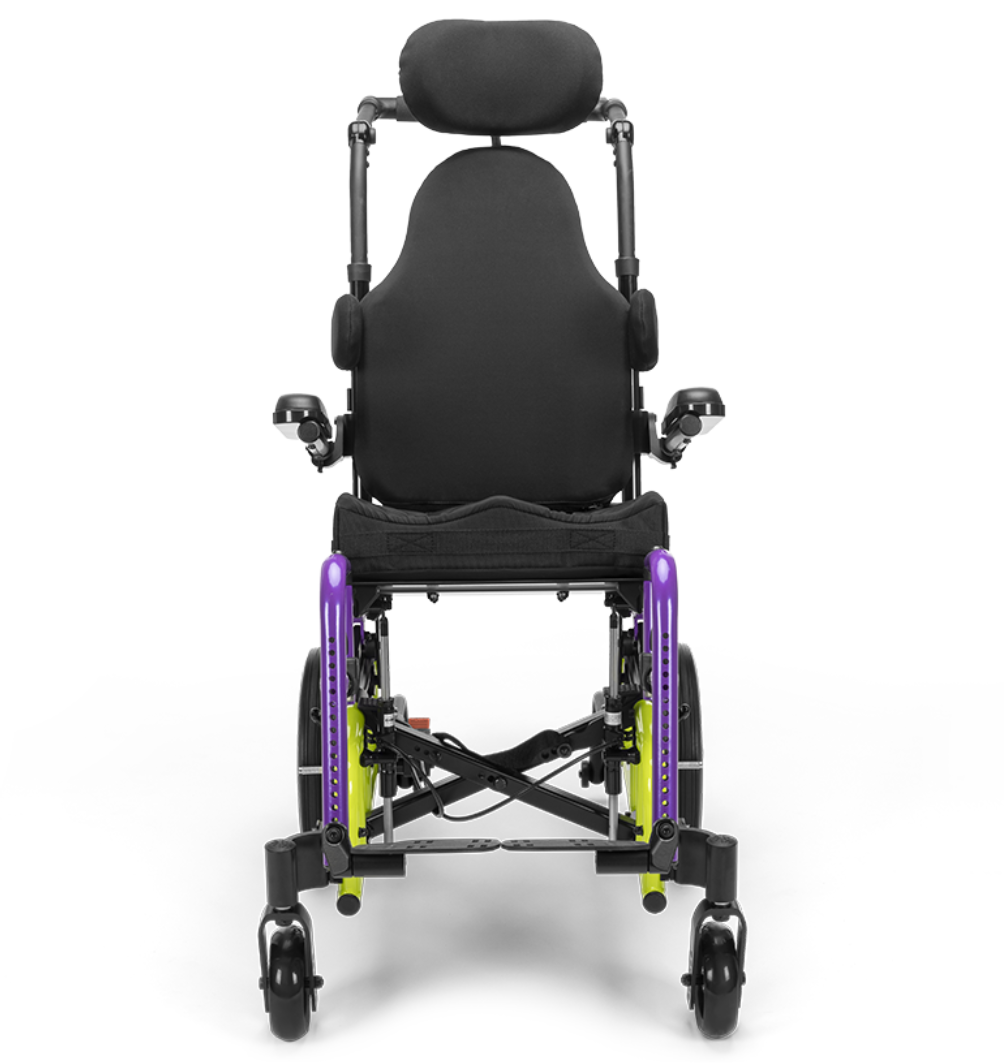

Ki Mobility Little Wave Arc Tilt-in-Space Wheelchair

The Ki Mobility Little Wave Arc is the lightest paediatric folding tilt-in-space wheelchair available. It’s intuitive, easy to fold design and compact wheelbase make its folded footprint incredibly small. The Arc has plenty of growth built in to grow with the child, and its high strength, lightweight frame and materials mean that it will be durable through childhood’s fun and adventure.

The Arc’s design also keeps parents in mind. It’s a great solution for kids who need tilt-in-space, as the Arc Tilt System (patent pending) results in effortless repositioning and a shorter, more manoeuvrable wheelbase. The Arc shaped tilt roller system helps translate and Centre of Gravity throughout the tilt process, ensuring the wheelchair stays stable even when tilted right back.

More Information

Repositioning

Tilting the user has been made easier through an Arc shaped roller guide system, which helps translate the Centre of Gravity throughout the tilt process.

Ki Mobility Little Wave Arc folded
Get out and go

The Arc is incredibly light and easy to fold, making getting out and exploring the world even easier.

Features available on the Little Wave Arc include:

Drum Brakes
Attendant Wheel Lock
Tilt Options
Folding Recline Back
Folding Adjustable Push Handle
Folding Height Adjustable Rigidiser Bar
Canopy
Slow your roll with drum brakes available on 12″, 16″ or 20″ wheels.
Accessing the wheel lock is easy for the attendant, ensuring the wheelchair is safely locked in place.
Tilt the occupant up to 45º. Single hand and foot tilt can be mounted on the left or right side.
The convenient and fast folding recline back assures the smallest folded package so you can get out and go.
Allows for quick folding with the push of a button and remains on the chair when folded
Adjusts to any height so it will not interfere with other cane mounted components or hardware. You simply twist the thumb knurl, disconnect one side and fold the wheelchair.

Helps shield the user from the sun or rain. The unique flip-up visor channels water off to the side or extends downwards for extra protection from the elements.

Specifications
Weight Capacity*75kg
Tilt Range0º - 45º
Seat Width10 - 18 inches
25 - 46cm
Seat Depth12 - 20 inches
30 - 51cm
Seat Height14.5 - 19 inches
37 - 48cm
Transport Weight9.3kg
Tubing Size1 inch
2.54cm
WC-19 TransitYes

* Weight calculated based on 14″x14″ frame with attendant wheel locks. Armrests, rear wheels and footrests omitted.

Warranty Information

Ki Mobility warrants the frame and quick-release axles of this wheelchair against defects in materials and workmanship for the life of the original purchaser. All other Ki Mobility-made parts and components of this wheelchair are warranted against defects in materials and workmanship for one year from the date of first consumer purchase.

The expected life of the frame is five years.

The warranty does not cover:

  • Wear items: upholstery, tyres, armrest pads, tubes, armrests and push handle grips.
  • Damage resulting from neglect, misuse or from improper installation or repair.
  • Damage from exceeding the weight limit.

Product Compliance with Relevant Standards

The Ki Mobility Little Wave Arc has been tested to and complies with the following standards:

  • AS/NZS 7176.1:2015

ARTG Certificate: 182896
